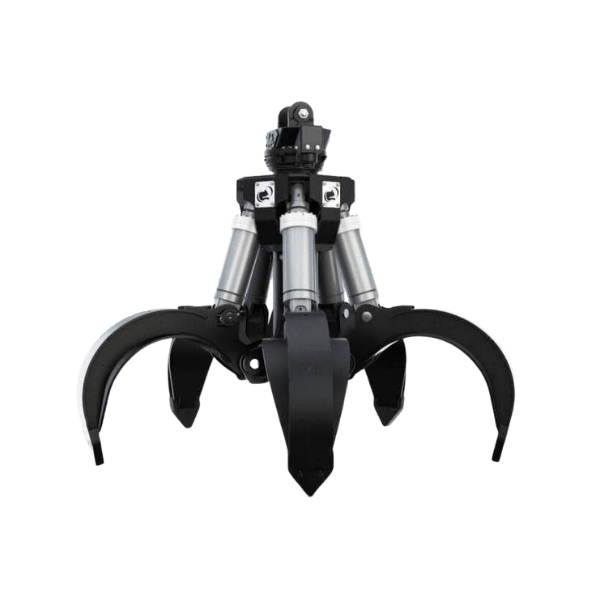

Orange Peal Grapple B
- Suitable for NM500 wear-resistant steel, light weight and wear-resistant.
- The pin shaft adopts 42CrMo alloy steel with built-in oil passagre, high strength and good toughtness.
- Optional Swiss imported rotary motor.
- The rotating type users a vertical motor motor rotation system, 360° rotation, with brake braking function.
- The oil cylinder adopts honing pipe and imported HALLITE oil seal, with short working period and long service life.
| Item MODEL | Unit | JSL04 | JSL06 | JSL08 | JSL010 |
| Suitable Excavator | T | 5-11 | 12-18 | 18-25 | 26-35 |
| Weight | Kg | 510 | 1200 | 1560 | 1800 |
| Max Jaw Open | mm | 1750 | 1780 | 1950 | 2180 |
| Height of Closed Grapple | mm | 1440 | 1540 | 1650 | 1860 |
| Set Uo Pressure | bar | 260 | 260 | 260 | 260 |
| Operating Flux | L/min | 20-70 | 60-120 | 60-120 | 6-120 |
| Cylinder Volume | L | 400 | 600 | 800 | 1000 |
| pcs | 5-6 | 5-6 | 5-6 | 5-6 | 5-6 |
