L.G.M. Rock Breakers
Inward valve type
LG Super Force Rock Breakers are Specially Designed by Korean Technology High Tensile Through bolts and Long Chisel Locks applied for long life. All Poly urethene buffer pads and upper lower pads used for shock Absorption.
The main brackets manufactured by high carbon plates and Hardox 400 plates.
These breakers are totally designed as high durability and economically friendly

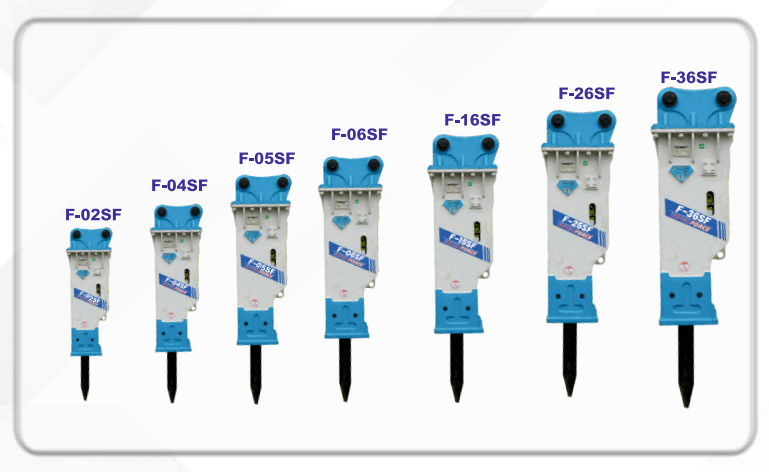

L.G.M. Super Force Rock Breakers
L.G.M. Super Force Rock Breakers are specially Designed by Korean Technology. High Tensile Through bolts and Long Chisel Locks applied for Long Life. All Poly urethene buffer pads and upper lower pads used for shockAbsorption. The main brackets manufactured by high carbon plates and Hardox400 Plates. These breakers are totally designed as high durability and economically.
| Discription | Unit | F-04 | F-06 | F-15 | F-25 | F-36 |
| Operating weight | Kgs. | 152 | 380 | 890 | 1850 | 2490 |
| Required Oil Flow | L/min | 25-50 | 50-90 | 80-120 | 120-150 | 150-190 |
| Operating Pressure | Bar | 90-120 | 100-130 | 140-170 | 160-180 | 160-190 |
| Chisel Diameter | mm | 53 | 75 | 100 | 140 | 150 |
| Hose Diameter | inch | - | 1/2* | 3/4* | 1* | 1* |
| Impact Rate | bpm | 600-1100 | 450-50 | 450-630 | 400-700 | 320-650 |
| Back Head Gas Pressure | N2 Bar | - | 17.5 | 16.5 | 14kg | 8kg |
| Accumulator Gas Pressure | N2 Bar | NA | NA | NA | 60kg | 60kg |
| Special Features | NA | NA | NA | NA | NA | |
| Excavator | Ton | 2.5-4.5 | 6-9 | 10-15 | 20-26 | 25-32 |
